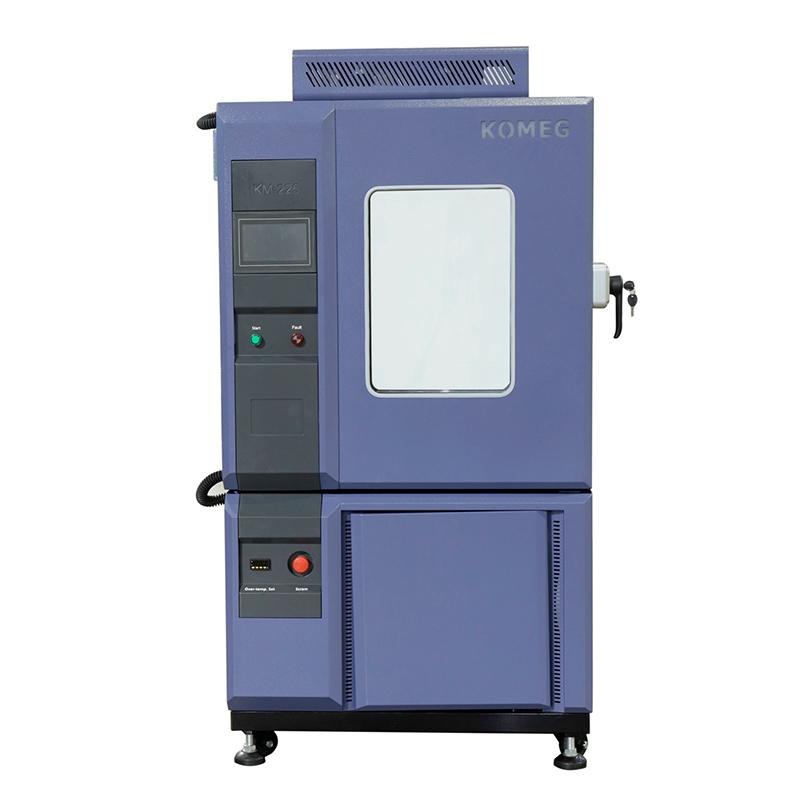

Thông số kỹ thuật: Tủ thử nghiệm nhiệt độ và độ ẩm KOMEG
| Model No. | KMH-64 | KMH-150 | KMH-225 | KMH-408 | KMH-1000 | |
| Test Space Volume（Liters） | 64 | 150 | 225 | 408 | 1000 | |
| Inner chamber size W×H×D(mm) | 400×400×400 | 600×600×460 | 700×700×480 | 700×750×800 | 1000×1000×1000 | |
| Exterior chamber size W×H×D(mm) | 700×1652×1170 | 800×1715×1230 | 900×1660×1470 | 900×1710×1790 | 1200×1910×1725 | |
| Temperature range | R: -20°C to +150°C L: -40°C to +150°C S: -70°C to +150°C (180°C optional) | |||||
| Humidity range | 20% to 98% RH (10% to 98% RH , 5% to 98% RH (optional) | |||||
| Temperature & humidity fluctuation | ±0.5°C/±2.0% RH | |||||
| Temperature & humidity uniformity | ≤ 2.0°C/3% RH | |||||
| Temperature change rate acc. IEC 60068-3-5 | Heating rate 3°C/min, cooling rate 1°C/min(average rate, no load) | |||||
| Exterior chamber material | High-quality carbon steel with painting | |||||
| Interior chamber material | SUS304 matte stainless steel plate | |||||
| Insulation material | Rigid polyurethane foam insulation | |||||
| Refrigeration system | Air cooled/Water cooled | |||||
| Hermetic compressor, single stage or cascade refrigeration system, environmental-friendly refrigerant | ||||||
| Controller | 7"LCD Touch Screen Controller with PID control | |||||
| Safety protection device | NFB(No fuse breaker), over pressure, over heat and over current protectors for compressor, over temperature protectors, over load protector of fan, dry heat protector,short of water protector | |||||
| Standard accessory | Sight window*1, Cable port(port Φ50mm / Φ100mm)*2, Shelves*2, LED Lighting device*1 Mobile Casters with foot cups, Power cable*5m | |||||
| Ambient temp. | +5 to +35°C | |||||
| Power supply | 220V AC 1Ø 50Hz | 380V AC 3Ø 50Hz | 380V AC 3Ø 50Hz | 380V AC 3Ø 50Hz | 380V AC 3Ø 50Hz | |
| Customization service | Non-standard or special requirements can be customized. | |||||
