LED curing lamp

• The DELOLUX 20 and DELOLUX 202 UV glue curing equipment ensures fast uniform curing of UV glue inline production.
• The intensity of up to 2000 mW/cm ² and the large irradiation area (≥100 x 100 mm ² ) help the glue to dry quickly and evenly;
• The DELOLUX 20/202 can be customized for small-scale production or integrated into automated assembly lines.
• It is possible to combine 1 ~ 4 lamp heads on 1 control module to increase the irradiation area up to ~ 400 x 400 mm ².
• In addition, the DELOLUX 20 / 202 has a shelf life of > 20,000 hours, allowing continuous operation while ensuring a long life.

The DELOLUX 80 UV Lamp head with the intensity of up to 4000 mW/cm ² for 365 nm model and 5500 mW/cm ² for 400 nm model, the distance to the glued surface can be adjusted up to ~5 cm, making it easy to arrange the lights and bonded surfaces, and compatible with more element sizes.

• DELOLUX 50 spot lamp is a type of UV lamp used to irradiate small or very small areas of glue such as chip on board, camera module, mini speakers on smartphones, ...
• These lights are controlled by DELOLUX pilots S4i and S4T. These are two new models that are improved by DELO, with higher irradiation capacity and more compact size.

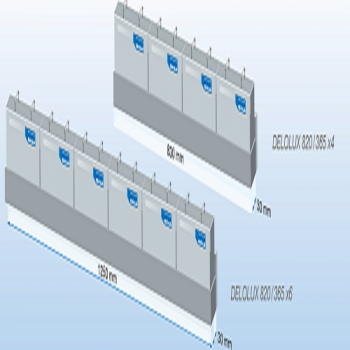

DELOLUX 820 lamp system allows fast curing and reliability, especially suitable for encapsulating chip application with DELO adhesive. This lamp allows achieving maximal energy intermediate start. Besides, DELOLUX 820 give UV light to continue for a long time approximate 20000 hours under normal condition.

DELOLUX 50 / 502 is an excellent choice for quick and precise curing of UV glue with very small, teardrop-style glue dots. With an intensity of up to 12,000 mW/cm², this UV illuminator can give an exposure time of less than one second. Moreover, this device is not only space-efficient but also extremely reliable: Uniform light intensity.

DELOLUX pilot S4T has a compact module form, connects up to 4 lamp heads, for stability and long life (> 20000 h), ensuring safe operation when working with DELOLUX 50 / 502.

DELOLUX pilot AxT has a compact module form, connecting up to 4 lamp heads, for stability and long life (> 20000 h), ensuring safe operation when working with DELOLUX 20/202.
