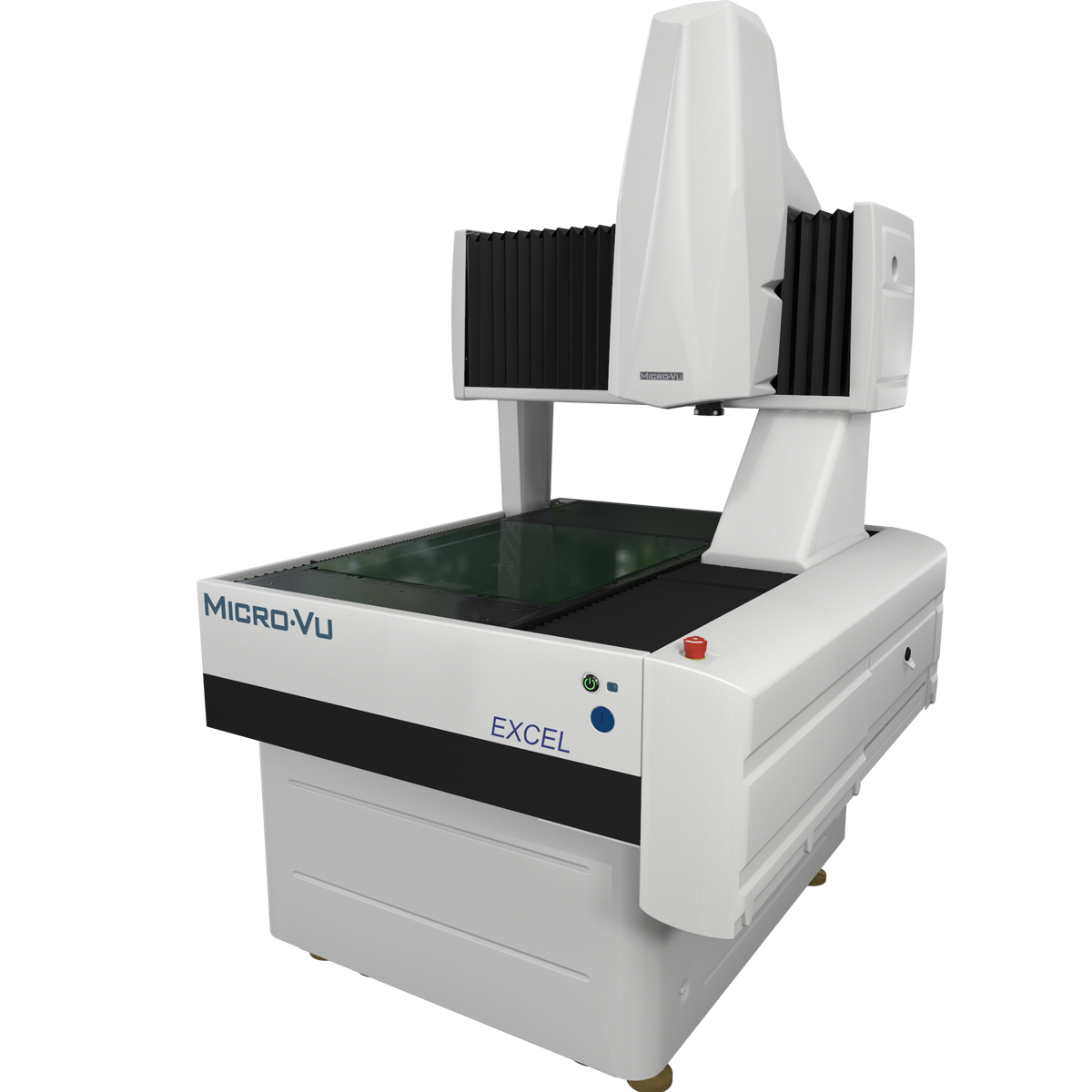

  • The Micro-Vu Excel Measuring Center is a gantry stage system equipped with a high-resolution camera-based measuring system to get fast, accurate measurements on a wide variety of parts. Excel can be configured with additional measurement probes and sensors.

Excel provides vivid pictures through a programmable optical and digital zoom, supports sensitive touch probe accessories allowing measurement of smaller intricate geometry, and high speed vertical distance measurement sensors for scanning capability that covers both specular and diffuse parts.

Excel includes our InSpec Metrology Software®, which provides point-and-click simplicity, proprietary edge detection, advanced lighting control and calibration, multisensor integration, automated calibrations, and a clear display of measurement data and tolerances.

Main features:

  • Accommodates large parts and fixtures of multiple parts while maintaining a compact footprint.
  • Measures parts up to 2.5 meters long and up to 100 kilograms.
  • High resolution digital camera.
  • Programmable optical and digital zoom.
  • Integrated electronics design, for better system performance and serviceability.

  • Advanced proprietary motion control ensures high accuracy measurements at high speed.
  • Supports sensitive touch probes accessories.
  • Programmable profile, surface and coaxial lights.
  • Single USB connection to computer.
  • Integrates high speed vertical distance measurement sensors for scanning capability.
  • Supports RSD-60 Rotary Device.
  • Includes automated calibration procedures.

Specifications:

Specs
ModelEXCEL 512EXCEL 702EXCEL 902
Measurement Volume (mm)420 × 520 × 250660 × 700 × 250750 × 900 × 250
Stage Capacity (kg)100100100
Exterior Dimensions (mm)1295 × 1221 × 18031525 × 1607 × 18191625 × 1808 × 1819
Machine Weight (kg)73916132644
X/Y Max Speed (mm/s)500
Z Max Speed (mm/s)250
Linear Resolution (µm)0,05
Input Voltage (VAC)100-240
Power Consumption (W)210255255
Operating Temperature18-27; <1 change per hour, <2 change per day °C
Storage Temperature0 - 50 °C
Relative Humidity30%-80% (Non-Condensing)
Max Altitude< 4000m
Sound Level< 70dB (A)



Other models:

ModelEXCEL 1304EXCEL 1704EXCEL 2500
Measurement Volume (mm)1050 × 1300 × 4001250 × 1700 × 4001600 × 2520 × 160
Stage Capacity (kg)100100100
Exterior Dimensions (mm)1925 × 2208 × 21192125 × 2608 × 21192470 × 3470 × 1672
Machine Weight (kg)310835156804
X/Y Max Speed (mm/s)500
Z Max Speed (mm/s)250
Linear Resolution (µm)0,05
Input Voltage (VAC)100-240
Power Consumption (W)255
Operating Temperature18-27; <1 change per hour, <2 change per day °C
Storage Temperature0 - 50 °C
Relative Humidity30%-80% (Non-Condensing)
Max Altitude< 4000m
Sound Level< 70dB (A)



Options:

1. Touch probe:

  • RENISHAW® TP200/TP20 Probe Body
  • RENISHAW® TP200/TP20 Probe Module/s
  • M2 Five Way Stylus Center
  • M2 Stylus (5 ea. 3 mm x 20mm)
  • M2 Extensions (2 ea. 10 mm, 2 ea. 20 mm, & 1 ea. 30 mm)
  • Multi-Port Probe Change Rack (2, 4 or 6 Port)
  • Module, Stylus, and Fixture Storage Box.
  • Micro-Vu Offset Fixture & Reference Sphere Assembly.
  • Mounting Hardware, Cleaning Kit, and Case.



2. Distance sensor



3. RSD 60 Rotary
