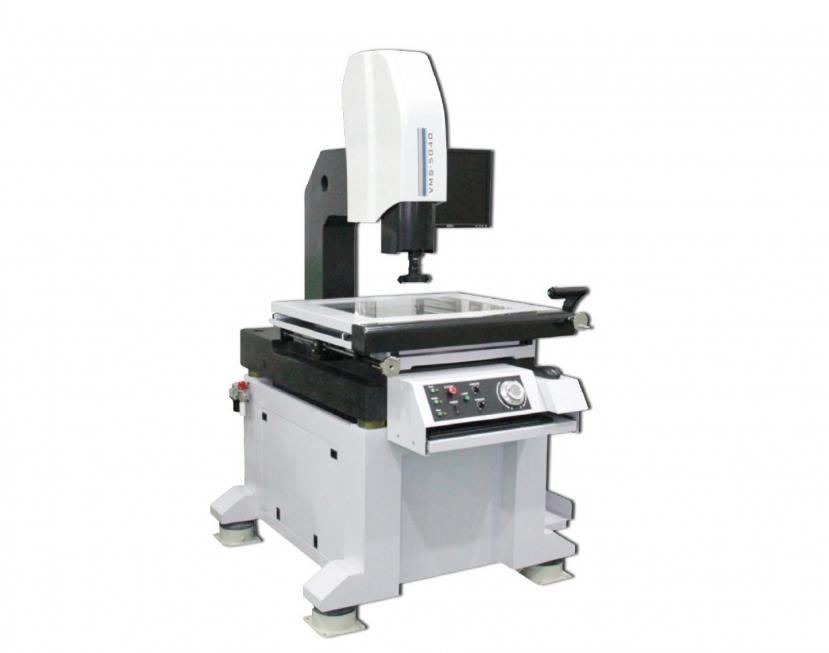

Manual VMM, Z axis-Automatic

Manual VMM, Z axis-Automatic

lien_he

Model: VMM-5040M

Manufacturer: Carmar - Taiwan

Features of our system

Save your time to measure by up to 50%

Why? because the instinctive design on our software coincide with our hardware make you easily understand the software.

Therefore, you save the time to understand, measure and even train your new operators, the time you save allows you to do other more important tasks!

Long lifetime lower the yearly cost

Remote training available by Teamviewer from us

Features:

1. Z-axis is available in 3 focusing modes.

2. User-friendly interface let you operate easily.

3. One-button working table - Much Easier to operate.

4. Adopts passive vibration isolation apparatus, which improves an instrument’s stability in the aspect of precision

5. Auto zoom feature (optional configuration), which is able to effectively measure the object with multi-magnification while doesn’t need to calibrate pixels.

6. Detects the measured workpiece’s specific location by laser indicator, which is suitable for complicated workpiece.

7. elf-developed measuring software QMS3D-M and imported HD 1/2” color camera.

8. Foot-switch matched with measuring software, which makes operation easier.

9. Height aided measurement available.

10. Linear scale resolution: 0.5um

11. Made in Taiwan Quality Assurance

Model

VMM-5040M

Working Table

Metal table size (mm)

786x636

Glass table size (mm)

570x470

Travel X/Y/Z (mm)

470x370x200

Linear scale resolution

0.5µm

Indication error

E1XY=(2.8+L/75)μm,

L=measuring range

Video system

CCD camera ½’’

0.7~4.5× zoom lens

Total magnification: 20~128X

FOV: 11.1mm -1.7mm

Power supply: AC 100-240V 50/60Hz

Power: 1800W

Dimension (L×W×H) (mm)

1200x1270x1870

Weight (kg)

850
