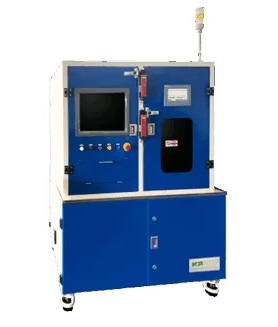

 | The Automatic Optical Inspection Solution for Big Roller Appearance Defects is a professional machine for inspecting spherical rollers. It detects defects on the diameter, dents, chamfer, and both ends. Using robots to handle the rollers prevents secondary damage. It inspects up to 1800 pcs/h and can run continuously 24/7 in various conditions. Advanced technology enables multiple inspection functions, and a user-friendly interface makes operation easier for operators. |
Flexible Connection
Flexible connection can avoid secondary damage and the equipment can operate 7*24 hours uninterrupted in various circumstance..
360-degree Inspection with No Blind Spots
It successfully breaks the dilemma between inspection angle and speed and realizing 360-degree inspection.
Multi-model Configuration
Chamfer detection, dent detection, multi-model configuration and other new functions are added.

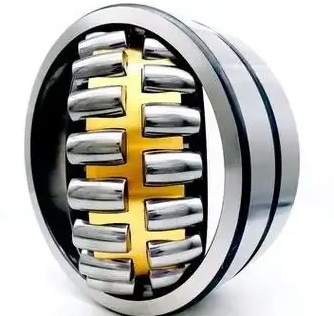

Workpiece
Multiple Applications, Customized Solution Portfolio.

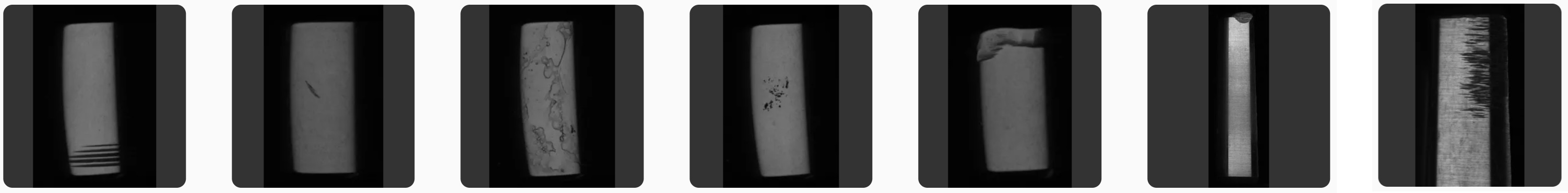

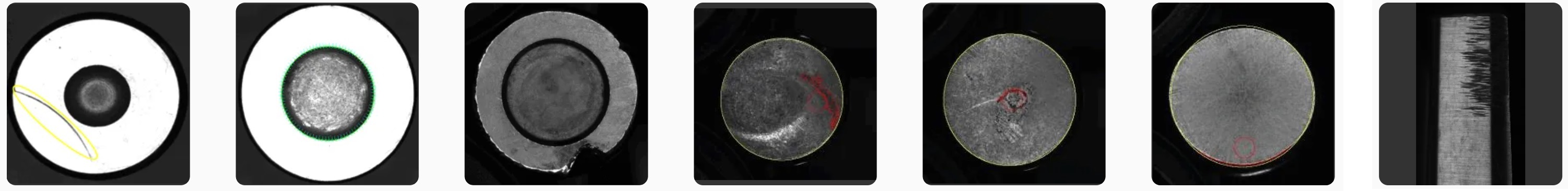

Common defects image
Basic specification
| Item inspection | Cylindrical surface: Less Grinded, Grinding Marks, Excess Grinding, Smashed, Rust, Scratch, Crack and etc. End surface: Grinding Mark, Dent, Dimple, Spots, etc. | ||
| Inspection range | Φ 20-60mm; L 12-80mm | Mean Time to Failure | 10000 hours |
| Optical resolution | 0.05mm | Inspection Requirements | Clean surface, no oil stains |
| Speed | 900-1800pcs/h | Power supply | AC, 1 Phase, 220V; 50/60Hz |
| Power consumption | 2.0kW | Air compression | 0.5MPa～0.8MPa |
| Dimensions / Weight | 1500(L) x 1700(W) x 2200(H) mm / 1500Kg | ||
| Operation environment | Temperature: 5℃-30℃；Humidity: <70% | ||
| Features |
| ||
