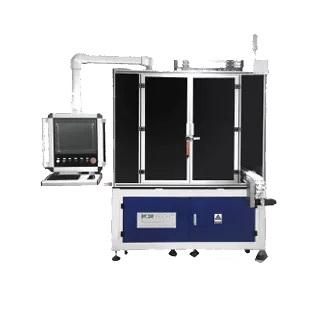

 | The Automatic Optical Inspection Solution for Big Roller Appearance Defects is a professional machine for inspecting medium and large rollers. It detects defects on the diameter, dents, chamfer, and both ends. Using robots to handle the rollers prevents secondary damage. It inspects up to 2,000 pcs/h and can run continuously 24/7 in various conditions. Advanced technology enables multiple inspection functions, and a user-friendly interface makes operation easier for operators. |
Strong Data Support
The inspection data turns more accurate with a database collecting defects of hundreds of millions of rollers. The inspection technology has reached a world-leading level.
360-degree Inspection with No Blind Spots
It achieves 360 degree comprehensive detection.
Multi-model Configuration
One machine can enable to detect wide size range of rollers, equipped with multi-model configuration and one-click change function.

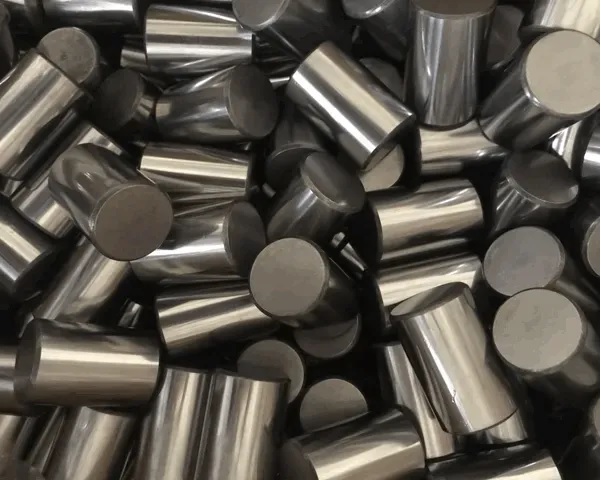

Workpiece
Multiple Applications · Customized Solution Portfolio

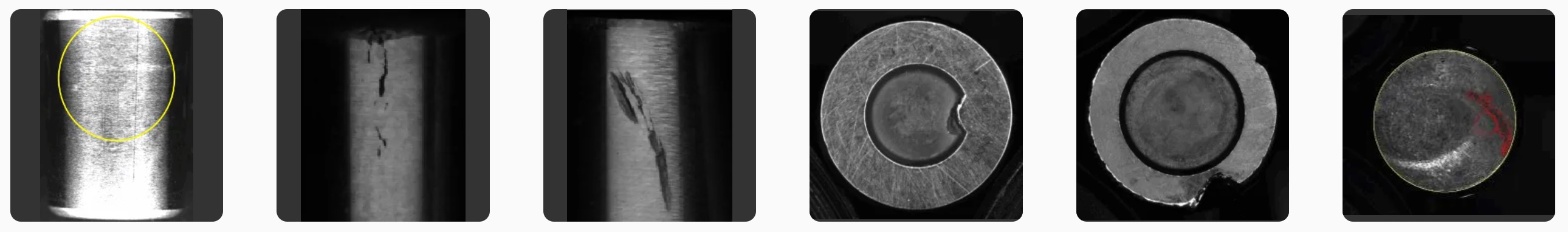

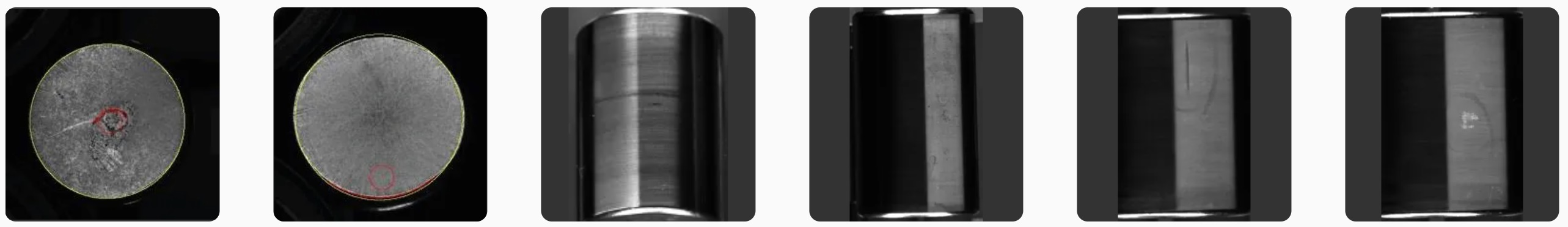

Defects image
Basic specification
| Item inspection | Cylindrical surface: Less Grinded, Grinding Marks, Excess Grinding, Smashed, Rust, Scratch, Crack and etc. End surface: Grinding Mark, Dent, Dimple, Spots, etc. | ||
| Inspection range | Φ 20-80mm | Mean Time to Failure | 10000 hours |
| Optical resolution | 0.05mm | Inspection Requirements | Clean surface, no oil stains |
| Speed | 900-2000pcs/h | Power supply | AC, 1 Phase, 220V; 50/60Hz |
| Power consumption | 6.2kW | Air compression | 0.5MPa～0.8MPa |
| Dimensions / Weight | 1500(L) x 1700(W) x 2200(H) mm / 1500Kg | ||
| Operation environment | Temperature: 5℃-30℃；Humidity: <70% | ||
| Features |
| ||
