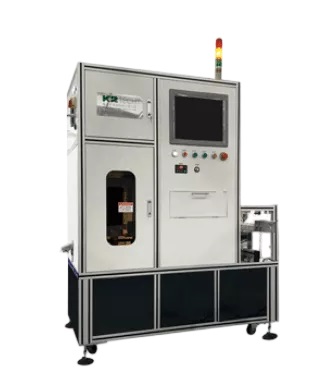

 | The optical automatic detection equipment inspects 360° appearance defects on bearing needle rollers, such as grinding marks, rust, collapsed surfaces, and knife-like marks. Detection speed reaches 60,000 pcs/h, and the system supports high-speed wired appearance inspection. It integrates dimension measurement and out-of-tolerance sorting to effectively remove parts that don't meet length standards. |
Applied in Multiple Scenes
The equipment can also be applied in valve catheter, cylindrical pin and other appearance defect inspection industries.
360-degree Inspection with No Blind Spots
The equipment solves some difficult pain points in manual inspection such as error detection and missing detection.
Saved cost
The customers will gain benefits of lower labor costs, higher quality of inspection and stronger market competitiveness of products.

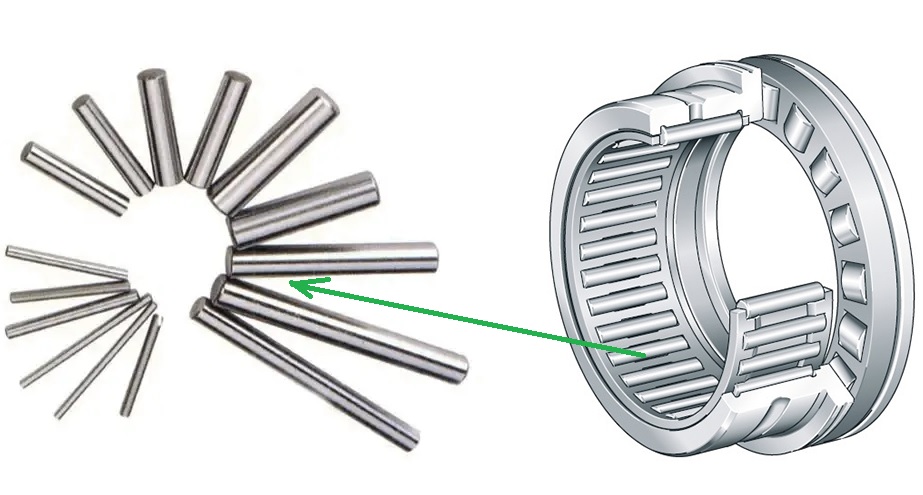

Workpiece
Multiple Applications, Customized Solution Portfolio: pin, shaft, rod, roller, spindle, ...

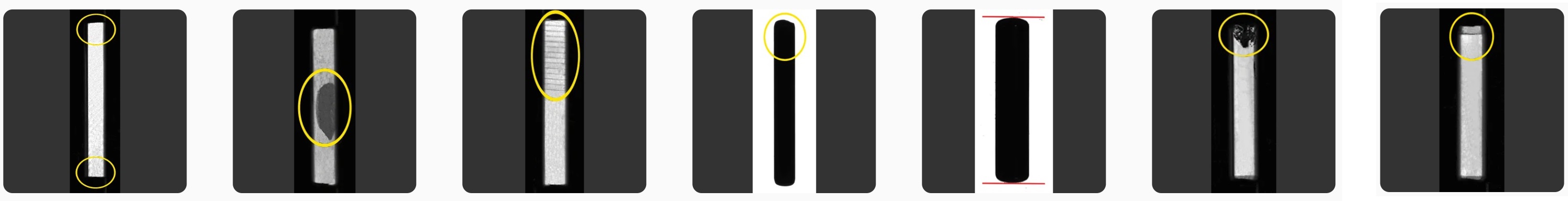

Defects image
Basic specification
| Item inspection | Grinding marks on raceway, marks like knives, rusty spots, short shots, flat end, over-grinding, crack, length measurement, out of roundness measurement. | ||
| Inspection range | Φ 2-4mm，L 5-30mm | Mean Time to Failure | 10000 giờ |
| Optical resolution | 0.03mm | Accuracy | 0.2mm |
| Speed | 5-10m/min | Power supply | AC, 1 Pha, 220V; 50/60Hz |
| Power consumption | 1kW | Air compression | 0.5MPa～0.8MPa |
| Dimensions / Weight | 1600(L) x 600(W) x 1700(H) mm / 300Kg | ||
| Operation environment | Temperature: 5℃-30℃；Humidity: <70% | ||
| Application scopes | This equipment is designed to handle and perform complete inspection on needle rollers of varying dimensions. | ||
