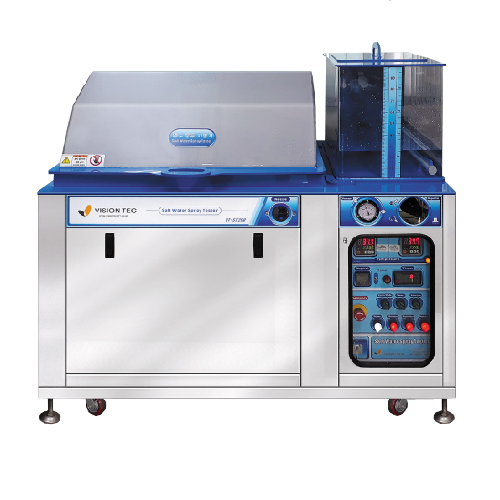

Salt Water Spray Tester
Model: VT-ST 400-86/480-86
Manufacturer: VISIONTEC - KOREA
This instrument is mainly to do surface processing for various materials, including paints, electroplate, inorganic and anti-rust oil, and after anticorrosion treatment, test the corrosion resistance of their products.
Widely used in the aerospace industry, automobile electronics, electronic electrician, mobile phone digital, plastic products, metal materials industries.
Test principle of salt water spray tester VT-ST 400-86/480-86:
Compress corrosive solution as air-atomizing to cover each sides of sample. Continuously or circularly conduct this test until sample appear prospective corrosive phenomenon. Record the corrosive time to assess sample's corrosion resistance.
Featurest:
Spraying of uniform particle mist inside Chamber available by using the Specialy Nozzle.
Comply with the Salt Water Spray Tester VT-ST 400-86/480-86
NSS test (35oC ± 2oC) & CASS Test (50oC ± 2oC) requirements.
Possible Cycle operation, Power-saving type.
Specification:
Model | VT-ST400-86 | VT-ST480-86 | |
Acording to | KS D9502 , JIS Z 2371 , ASTM B 117 , DIN50 021 | ||
Temp. range | NSS: RT ~ 35oC ; CASS: RT ~ 50oC | ||
Tester method | Neutral Spray Test ; CAS Spray Test | ||
Temp. control | Digital P.I.D control | ||
Spray volume | 1.5 ± 0.5ml / 80cm2 / h (Mean value of 24 hours operation) | ||
Tester temp. | Salt Spray tester: NSS (35oC ± 2oC), CASS (50oC ± 2oC) | ||
Chamber Door | PVC & Acryl (transperant) Manual or Automatic | ||
Dimension (WxDxH mm) | In | 1500 x 800 x 600 | 1800 x 800 x 600 |
Out | 2200 x 950 x 1450 | 2750 x 1100 x 1850 | |
Material | In | PVC 8t | PVC 8t |
Out | Inox 304 Mirror(1.2t) | Inox 304 Mirror(1.2t) | |
Heater capacity | Chamber: 2.6kw | Chamber: 2.6 Kw | |
Saturation: 0.9kw | Saturation: 0.9kw | ||
Savety device | ELB, OHP | ||
Power supply | 220V or 380V 50/60Hz | ||
