The Qness 150 M is a hardness tester not only by Rockwell method but also by Brinell and Vickers. And is considered a line of universal hardness testing machines, load force up to 250kg.
TEST METHODS AND FORCE APPLICATION:
Rockwell: DIN EN ISO 6508, ASTM E-18
HRA - HRV, HR15-N/T/W/X/Y, HR30-N/T/W/X/Y, HR45-N/T/W/X/Y
Brinell: DIN EN ISO 6506, ASTM E-10
HBW 1/1, HBW 1/2.5, HBW 1/5, HBW 1/10, HBW 1/30, HBW 2.5/6.25, HBW 2.5/15.6, HBW 2.5/31.25, HBW 2.5/62.5, HBW 2.5/187.5, HBW 5/25, HBW 5/62.5, HBW 5/125, HBW 5/250, HBW HBT (not acc. to standards)
Vickers: DIN EN ISO 6507, ASTM E-384, ASTM E92
HV 1, HV 2, HV 3, HV 5, HV 10, HV 20, HV 30, HV 50, HV 100, HVT (not acc. to standards)
Integrated conversions: DIN EN ISO 18265, DIN EN ISO 50150, ASTM E140
ON 12" TOUCH-DISPLAYEVALUATION AND DATA MANAGEMENT
High-quality and sturdy aluminium case USB for data export and data input Quick change between lenses and penetrators
Data management and Test report creation:
Row measurement:
Numerous statistics:

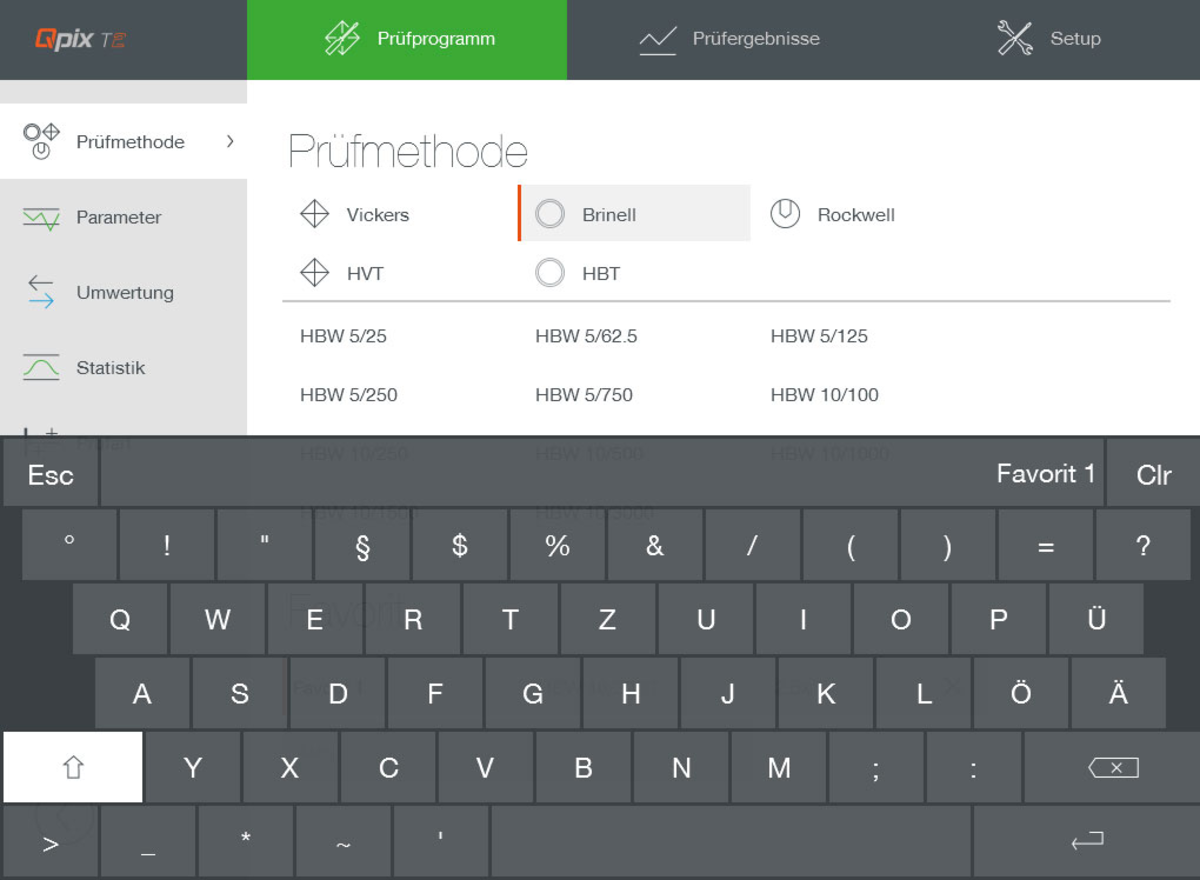

Input by virtual keyboard:
ACCESS TO UNIVERSAL HARDNESS TESTING
- Optic evaluation by means of manual movement of the test anvil under the lens
- The work piece is secured against shifting by means of magnets
- Integrated lens system with high resolution camera
- Long working distance lenses and automatic brightness adjustments
- Operation via external 12“ touch-screen with Qpix T12
WORKING ROOM LIGHTING:
EXTENDED TEST AREA
The complete series can be customized. Send us your specifications and you will immediately receive a customized solution that works.
TECHNICAL DATA
| Test force range | 1 - 250 kg (9.81 - 2450 N) |
| Test height / Throat depth | 260 mm / 180 mm |
| Test height extension | 450 mm |
| Height adjustment | v max 6 mm/s |
| Software | Qpix T2 |
| Integrated optic system | Yes |
| Camera system | High resolution camera system |
| Test anvil / Cross slide | Manual cross slide 250 x 260mm |
| Data interface | 1x USB (Display), 2x USB, 1x RJ45 (Ethernet), 1x RS232 |
| Weight of basic machine | 105 kg |
| with Test height extension | 122 kg |
| Max. work piece weight | 100 kg |
| Power supply | 230~1/N/PE, 110~1/N/PE |
| Max. power consumption | ~ 240 W |
Accessories and Options | |
| General | Test anvils, Indenters |
