Automatic Micro Hardness Tester

Automatic Micro Hardness Tester

lien_he

The innovative „A“ model promises perfect automation and comes with a high-precision positioning control for all three axis systems

The „A+“ model is additionally equipped with a sample image camera.

QNESS 60 A/A+ EVO

The QATM Qness 60 EVO series takes micro hardness testing to a whole new level: the high-end laboratory devices of the latest generation combine the best of both worlds – hardness testing and microscopy without compromise and with maximum operating convenience. The revolutionary optical system with color camera provides reproducible and reliable results every time.

The innovative „A“ model promises perfect automation and comes with a high-precision positioning control for all three axis systems. Flexible XYZ progressions for thousands of analysis points allow for exceptionally high sample throughput without operator intervention.

The „A+“ model is additionally equipped with a sample image camera.

PRODUCT ADVANTAGES

  • Wide test force range (0.25 g – 62.5 kg)
  • ASTM+DAkkS certified Vickers test diamond included
  • Dynamic test turret with 8-position tool changer
  • White LED light with motorized aperture shuttering
  • Qpix Control2 Software with intuitive 3D control elements
  • Modular activation of INSPECT microscopy features
  • Fully automated, unmanned test and analysis cycles
  • XYZ axis control with direct optical path measuring system (resolution of 0,5 µm)
  • Variant A+ only: Sample image camera with automatic image acquisition (49 x 37 mm)

MICRO HARDNESS TESTER QNESS 60 A/A+ EVO

HARDNESS TESTER



UNLIMITED OPTIONS

  • Hardness testing module with a test force range of 0.25 g to 62.5 kg as standard – including ASTM & DAkkS-certified Vickers test diamond
  • 3 versions - from semi-automatic application (M) to full automation (A/A+)
  • Solidly-built machine – ‘Made in Austria’
  • Variably-structured, vibration-reducing cast body with frame in anodized aluminum.
  • Fully automated test cycle: Electronic force appplication and closed-loop control


VERTICAL CONCEPT WITH 2 Z-AXES

There are decisive benefits in distributing vertical movement across 2 axes. Via the first Z-axis there is dynamic motion control, allowing the indenter to be positioned towards the test surface quickly and conveniently at up to 30mm/s. The additional second Z-axis in the QATM system offers a high-resolution positioning system for greater precision in force application and focusing.



8-POSITION TOOL CHANGER

Up to 8 different test diamonds or lenses can be mounted to the ultra-modern test turret. The compact structure is angled at 20° to guarantee excellent test room visibility.

Highlight: The newly developed hardness testing modules serve as modular indenter holders enabling plug-and-play retrofitting of Brinell and Knoop test equipment at any time after delivery.

MICRO HARDNESS TESTER QNESS 60 A/A+ EVO

TEST METHODS & FORCE RANGE

Vickers
DIN EN ISO 6507, ASTM E-384, ASTM E92

HV 0.00025*; HV 0.0005*; HV 0.001; HV 0.002; HV 0.003; HV 0.005; HV 0.01; HV 0.015; HV 0.02; HV 0.025;

HV 0.05; HV 0.1; HV 0.2; HV 0.3; HV 0.5; HV 1; HV 2; HV 2,5*; HV 3; HV 5; HV 10; HV 20; HV 30; HV 50; HV 60*



Knoop
DIN EN ISO 4545, ASTM E-384, ASTM E92

Tiêu chuẩn DIN EN ISO 4545, ASTM E-384, ASTM E92

HK 0.001; HK 0.002; HK 0.005; HK 0.01; HK 0.015; HK 0.02; HK 0.025; HK 0.05; HK 0.1; HK 0.2; HK 0.3; HK 0.5; HK 1; HK 2



Brinell
DIN EN ISO 6506, ASTM E-10

HBW 1/1; HBW 1/2.5; HBW 1/5HBW 1/10; HBW 1/30HBW 2.5/6.25HBW 2.5/15.625HBW 2.5/31.25HBW 2.5/62.5

HBW 5/25; HBW 5/62,5HBW 5/62.5 (> 30 HBW)

Integrated conversions: DIN EN ISO 18265, DIN EN ISO 50150, ASTM E-140.

MICRO HARDNESS TESTER QNESS 60 A/A+ EVO

HARDNESS TESTER OR MICROSCOPE? BOTH



REVOLUTIONARY OPTIC SYSTEM

The QATM-developed, in-house manufactured lens system sets new standards. As well as providing crystal clear image quality for hardness testing, Koehler illumination uses white LED light and motor-operated aperture shuttering to produce ideal contrast, even for high magnification images. The color-corrected high-quality lens series is used for structural analysis. There are also two camera systems to choose from. Experienced metallurgists agree the image quality provided by the Qness 60 EVO is comparable in all aspects with that of established sophisticated microscopes. The up-to-date concept and new lenses in the optic system enable the device to completely meet even the strictest physical ‘test system definition’ requirements in compliance with DIN EN ISO6507-1/2:2018.



AUTOMATED HARDNESS TESTING AND MICROSCOPY

It is now possible to execute all required quality assurance tasks with a previously unattained degree of convenience and time efficiency. The QATM Qness 60A and A+ EVO devices can work through hundreds – even thousands – of test and analytical points in a fully automated, unmanned setting. The analytical functions have also been integrated in order to enable the operator working in a manual mode to analyze sample properties with maximum efficiency, and to deliver the requested results smoothly and simply.



INTERACTIVE TEST SOFTWARE FOR ALL VERSIONS

Qpix Control2 is pioneering the ultra-modern software operation of hardness testing equipment and has been expanded to include intelligent measurement tools for lengths and angles. It’s ideal for establishing templates, and now also for the testing of welds (A/A+ models). In addition, the optional INSPECT software modules can be seamlessly integrated into the overall operating infrastructure:

  • Phase analysis
  • Layer thickness measurement
  • Grain size evaluation

MICRO HARDNESS TESTER QNESS 60 A/A+ EVO

PIONEERING TECHNOLOGY - UNIQUE IMPLEMENTATION



EXACT POSITIONING AND A LARGE TEST SPACE

All 3 axes are equipped with the direct, optical path measuring system as standard. The axes and turret can be positioned to an accuracy of 1.5 μm, so even thin layers, or special testing or analytical coordinates, can be repeatedly and accurately approached.



DIFFERENT TEST HEIGHTS

The unique construction of the highly-dynamic tool changer turret allows the positioning of test pieces at various heights within the test area. Innovative CAS technology protects the unit from collisions.



OPTIMIZED PERFORMANCE AND SILENCED DESIGN

Optimized testing parameters and shorter intervals for serial autofocus, brightness regulation and image analysis, facilitate unbeatable cycle times during everyday operation involving hardness testing devices of the new EVO product line; and it’s even faster than the previous model. A further benefit of the new machine concept is the emphasis on reduced noise emissions in operation and motion, making it particularly suitable for laboratory work.



IPC TECHNOLOGY / RATATABLE INDENTER

IPC – ‘Indenter Parallel to Contour’ (optional)
The operator can select the route and points for the Knoop indenter along each contour, either manually, via the software setting, or fully automatically. The compact indenter unit with a built-in rotation drive facilitates fully automated hardness testing in layers or along the edge of the workpiece.

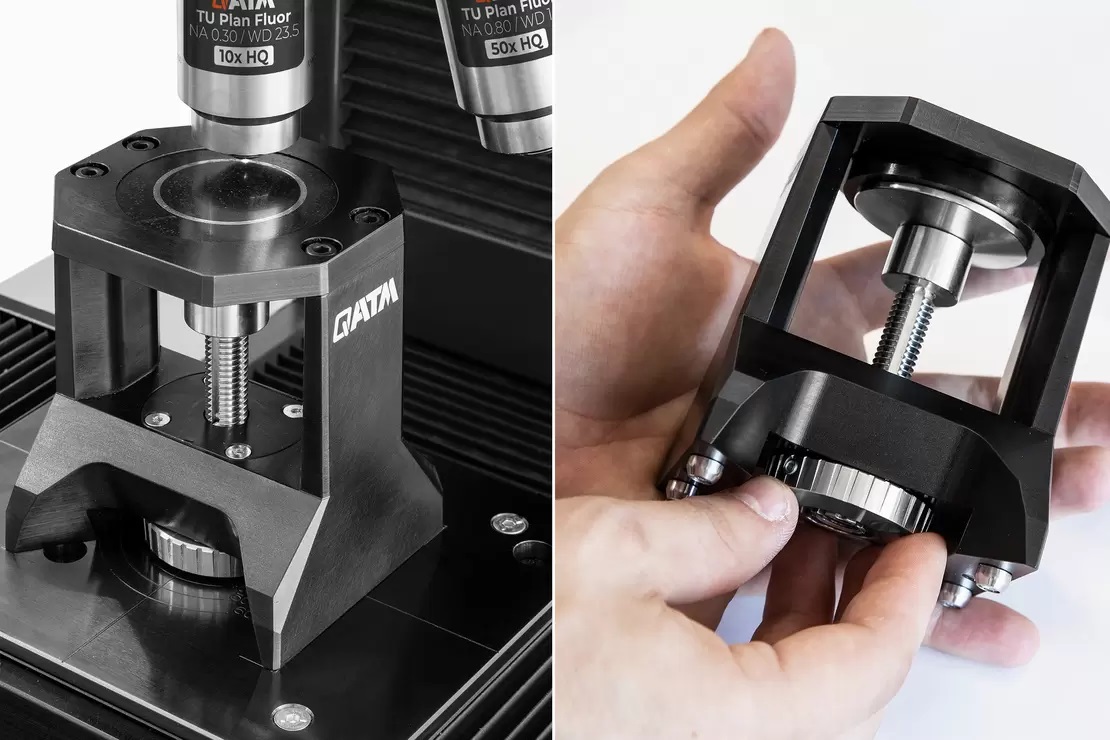

EMBEDDED SAMPLES

The secure clamping of samples thanks to a redesigned sample holder with a built-in clamping force limiter, simplifies sample centering and positioning. A sample plate with a ball-joint even clamps samples that cannot be held flat to prevent them tilting or sliding during testing. Available with 1, 4 or 8 sample-holding positions and adapter rings for a large range of metric and imperial sample diameters.



SAMPLE IMAGE CAMERA

It’s no coincidence that most QATM customers choose the ‘A+’ version with a built-in sample image camera. In a few seconds the image of the sample is shot with the additional camera (field of view 49 x 37 mm). The image provides excellent navigational support within the software, particularly in combination with DOUBLE-VIEW TECHNOLOGY, and aids enhanced documentation in the automatically compiled test report. ‘A’-version devices can also be upgraded to ‘A+’ versions by equipping them with the second camera system at a later date.

MICRO HARDNESS TESTER QNESS 60 A/A+ EVO

APPLICATIONS - PRACTICAL



TOOTH FLANK TESTING

The time-consuming creation of test points, especially with tooth flank testing, is minimized by means of pre-defined test templates. The Qness 60 A+ enables the entire normed procedure between HV30 and HV1 to be done by one single device.



TEMPLATE FUNCTION

  • Ideal for repeated tests / components
  • Alignment of ‘test point mappings’ directly on the work piece with reference lines and bench marks
  • Test point and analysis patterns without ‘fixed stop’ or sample holder
  • The sample image can be used in a clearly-structured test report


WELD SAMPLE TESTING AND ANALYSIS

Serial provision of ‘Advanced Welding’ functions facilitates the simple, norm-compliant (e.g. EN ISO 9015 & EN ISO 22826) integration of test mapping for hardness testing. Pre-defined patterns can be simply adapted to each respective test piece via interactive functions. If required, Qpix INSPECT modules can also provide a simultaneous material-graphics analysis of the weld seam.

OPERATION VIA EXTERNAL PC-SYSTEM

REVOLUTIONARY 3D OPERATING CONCEPT

Intuitive, clearly organized and professional: Qpix Control2 next-generation hardness testing software, developed based on customer feedback and input for maximum user-friendliness. The controlled test head benefits from automatic height adjustment and contactless exploration, complete integration of the Qness sample holder, CAD compatibility with 3D imaging and a whole range of easily understood 3D control elements and views included in the software. It sets new standards in hardness testing.



CUSTOMER-SPECIFIC SAMPLE HOLDER

Identical samples can be set up in the software in scale as a 3D model



CAS TECHNOLOGY

Innovative Collision Avoiding System (CAS) technology protects the mechanical parts in the device using predictive 3D motion calculations to visualize the effects of collisions and operation errors.

LOAD SAMPLE, LOAD ROW, START

3 STEPS TO THE RESULT



1. LOAD SAMPLE

The machine moves automatically to sample holder height. Image of sample is taken automatically.



2. LOAD ROW

AutoSnap - Speedy Row Set-up: Drag the row of test points to the desired position. The serial Auto-Snap function corrects the starting point of the test row automatically.



3. START TEST SEQUENCE

The test sequence is executed according to the applicable hardness testing standards.



MICRO HARDNESS TESTER QNESS 60 A/A+ EVO

2D/3D AREA MAPPING

The optional software module ‘2D/3D hardness chart’ is the perfect aid for the detailed determination of hardness distribution over the total cross section, especially for heat-treated samples. This is extremely important in material exploration, and also for weld testing or in damage analysis.


Area Mapping

3 STEPS TO PLAN A HARDNESS CHART


1. Create area 2. Define grid 3. Display in 2D Alternatively display it in 3D

Homogenous hardness distribution Test point pattern Edge recognition Fracture length measurement

STRUCTURAL ANALYSIS MADE EASY

QPIX INSPECT SOFTWARE MODULES

The intuitive and user-friendly Qpix INSPECT software functionality provides a comprehensive toolbox for microscopic evaluations and result documentation. The multifunctional software can be customized for customer-specific measuring tasks and complemented with add-on modules.



INSPECT PHASE ANALYSIS

  • Automatic image object dimensioning
  • Evaluation of phase fractions according to ISO 9042 and ASTM E562
  • Provides analytics results as percentage proportions of a surface or as nominal surface values as tables or diagrams


INSPECT LAYER THICKNESS MEASUREMENT

  • Determination of layer thickness according to DIN EN ISO 1463
  • Semi-automated gauging of horizontal, vertical and radial layers.
  • Provision of layer thickness as statistical values for lengths as tables or diagrams.


INSPECT PARTICLE SIZE DETERMINATION

  • Particle size determined according to DIN EN ISO 643 and ASTM E112 via linear or circular section method
  • Results of the analysis provided as tables or diagrams
  • Documentation of statistical characteristics of particle size and segment lengths cutting through the particles

INTELLIGENT DATA EXCHANGE SOLUTIONS TODAY

FOR CONNECTED TOMORROWS

Qconnect is the interface in QATM Qpix Control2 software, providing customers with a full portfolio of inter-device connectivity - from serial production, open XML interfaces (bi-directional) and pre-specified plug-in solutions, such as the QDAS Plug-In+, through to customer-specific connectivity solutions implemented completely by QATM. We have a professional solution for every applicational requirement.

MICRO HARDNESS TESTER QNESS 60 A/A+ EVO

ACCESSORIES AND INDIVIDUAL CONFIGURATIONS

QNESS 60 A+ PORTAL VERSION

The Qness 60 EVO is a portal solution that offers unique movement flexibility, opening up new possibilities in micro and low load hardness testing.

LAB TABLES

Configure and optimize your lab workplace with solutions from the comprehensive QATM lab furniture range.

EVEN LARGER WORK ROOM

The optional large slide doubles the test table surface area to 300 x 120 mm. If required, the test height can also be extended from 145 mm to 260 mm.

PREMIUM HARDNESS TEST BLOCKS

Premium quality in comprehensive variety. Independent DAkkS (ISO/IEC 17025) calibration according to DIN EN ISO and ASTM including software for periodic norm-compliant tests.

MICRO HARDNESS TESTER QNESS 60 A/A+ EVO

TECHNICAL DATA

QNESS 60 A EVO
Test force range0.25 g – 62.5 kg (0.00245- 306.6 N)
Test head controlDynamic, 3-Axis-Joystick automated (CAS Technic)
Tool positions8 (motorized Tool Changer) max. 3 hardness testing modules, max. 6 lenses
Measurement typesMulti-samples, CHD, NHD, SHD, Single-, Row measurement, Decarburization, Visual test patterns + Welds, Dimensioning tools
Measurement types (optional)Rings and tubes / Phase analysis, Layer thickness measurement, Grain size evaluation
Sample image camera-
Test height / Throat depth145 / 170 mm
Test anvil / XY cross slideMotorized
Table size150 x 120 mm
Traveling distanceX 150 mm / Y 150 mm / Z 145 mm
XY positioning repeatability+/- 1.5 µm
Max. workpiece weight50 kg
Weight of basic device60 kg
SoftwareQPIX CONTROL
Power supply100 – 240 V, ~1/N/P, 45-65 Hz
QNESS 60 A+ EVO
Test force range0.25 g – 62.5 kg (0.00245- 306.6 N)
Test head controlDynamic, 3-Axis-Joystick automated (CAS Technic)
Tool positions8 (motorized Tool Changer) max. 3 hardness testing modules, max. 6 lenses
Measurement typesMulti-samples, CHD, NHD, SHD, Single-, Row measurement, Decarburization, Visual test patterns + Welds, Dimensioning tools
Measurement types (optional)Rings and tubes / Phase analysis, Layer thickness measurement, Grain size evaluation
Sample image camera5 MP (Standard) or 18 MP (Option)
Test height / Throat depth145 / 170 mm
Test anvil / XY cross slideMotorized
Table size150 x 120 mm
Traveling distanceX 150 mm / Y 150 mm / Z 145 mm
XY positioning repeatability+/- 1.5 µm
Max. workpiece weight50 kg
Weight of basic device60 kg
SoftwareQPIX CONTROL
Power supply100 – 240 V, ~1/N/P, 45-65 Hz
