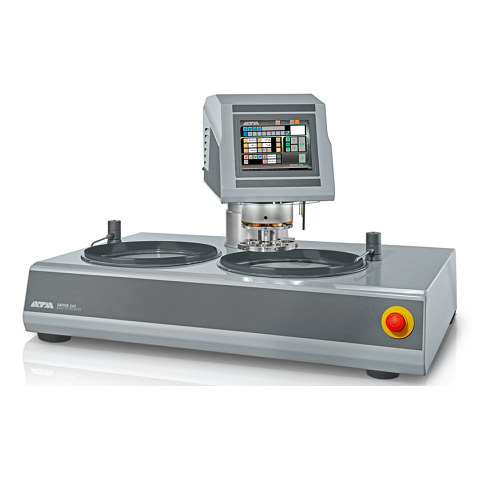

The SAPHIR 560 with RUBIN 520 is a twin wheel grinder and polisher of recent generation with an innovative grinding and polishing head for working wheels Ø 200-300 mm.
The head RUBIN 520 is equipped with an automatic protective hood and sets a new standard for operational safety. Single and central pressure, memory function, integrated dosing system, material removed measurement are only a few of the possibilities.
Motor-driven height setting with pneumatic clamping and all characteristics of the basic unit Saphir 360 meet the highest demands. The removal height can be pre-determined with 0.01 mm accuracy. The material removed measurement takes place automatically. After reaching the preset value, the machine switches off.
PRODUCT ADVANTAGES
- Double wheel grinder/polisher with Rubin 520
- Single and central pressure
- Variable speed of working wheel and polishing head
- Electronic control with touch screen
- Programmable memory
- Polishing head with clockwise/counter-clockwise rotation
- Memory function for side and height adjustment
FEATURES
| Working wheels | Ø 200-300 mm |
| No. of samples (single pressure) | 1-6 samples Ø 50 mm |
| Single pressing force | 5-100 N |
| Central pressing force | depending on holder |
| Connection power | 5.5 kVA |
| Drive power (base) | 2x 0.75 kW S6/40% |
| Drive power (head) | 0.17 kW S1 |
| Speed (grinder) | 50 - 600 rpm |
| Speed (head) | 30 -150 rpm |
| W x H x D | 1020 x 550 - 650 x 660 mm |
| Weight | ~ 110 kg |
| Water connection | 1x fresh water connection R½" max. 6 bars |
