Grinding & Polishing Qpol XL

Grinding & Polishing Qpol XL

lien_he

  • The Qpol XL is a robust and powerful powerhouse with unique removal performance and excellent preparation results.
  • With maximum stability of body and polishing head, this unit is part of a series of QATM floor standing polishing machines.




High sample throughput with maximum reliability: The Qpol XL is a robust and powerful powerhouse with unique removal performance and excellent preparation results. With maximum stability of body and polishing head, this unit is part of a series of QATM floor standing polishing machines. The integrated load cell and the innovative motorized force control allow defined material removal and highest process reliability. The storage of up to 200 preparation methods is possible in the intuitive software as well as professional user management.

PRODUCT ADVANTAGES

  • Working discs Ø 300/350 mm
  • Powerful engines: Drive spindle 2.2 kW - Polishing head 1.1 kW
  • Force control with electronic measuring system (50 - 750 N)
  • Modular dosing system with up to 6 vessels and optional magnetic stirrer
  • Motorized swivelling dosing arm for uniform wetting of the working disc
  • Spin cycle function of the working disc (Cleaning Boost)
  • Highest safety through automated safety hood
  • Fast, easy and tool-free work disc change



AUTOMATIC GRINDER / POLISHER QPOL XLREPRODUCIBLE PREPARATION RESULTS GUARANTEED










EASY-TO-OPERATEDOWN TO THE LAST DETAIL

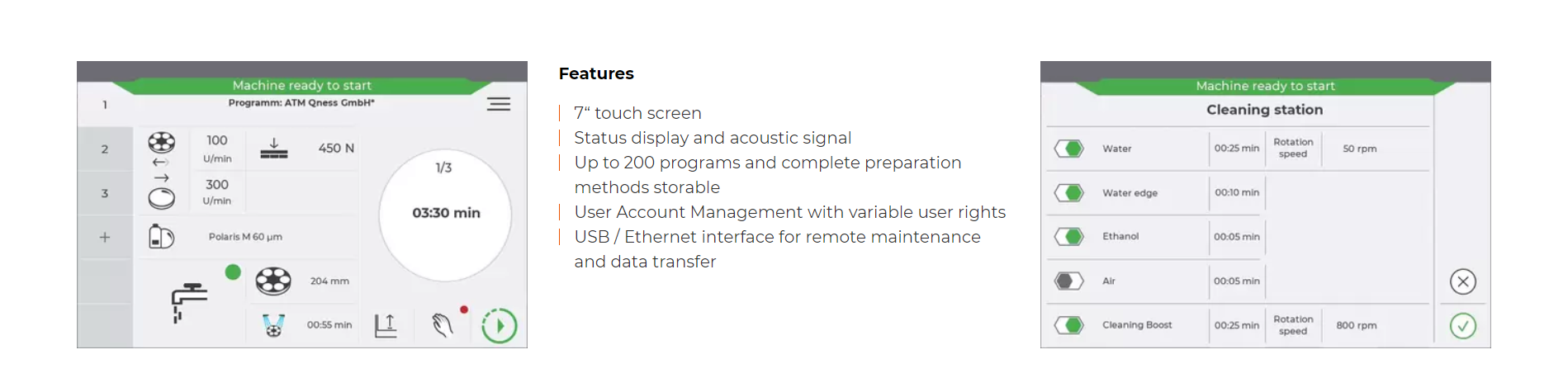

QPOL XL CONTROL SOFTWARECONVENIENT OPERATION

The modern design of QATM’s proven control software allows for intuitive and user-friendly operation. Standard preparation methods and typical consumables are preinstalled.

INNOVATIVE SOLUTIONSMODULAR CONFIGURATION



AUTOMATIC GRINDER / POLISHER QPOL XLTECHNICAL DATA

Working wheelsØ 300 / 350 mm
Speed working wheelvariable (50 – 600 min-1n)
Running direction working wheelright
Sample holderØ 159 - 204 mm
Speed sample holdervariable (50 – 350 min-1)
Running direction sample holderright / left
Pressing systemCentral pressing force
Central pressure50 – 750 N
Drive power working wheel2.2 kW (S1 operation)
Drive power head0.75 kW (S1 operation) resp. 1.1 kW (S3 operation)
Connection power6 kVA
Power supply400 V, 50 Hz (3Ph / N / PE) / 480 V, 60 Hz (3Ph / N / PE) / 220 V, 60 Hz (3Ph / N / PE)
Weight (depending on configuration)~ 390 kg

Qpol XL catalog
