DELO KATIOBOND LP655 solar panel adhesive

DELO KATIOBOND LP655 solar panel adhesive

lien_he

  • Specialized in optical materials such as adhesion between the base layer of solar panels and the outer protective PE film, helping to create flexibility and flexibility for thin film solar panels.
  • Bonding of temperature-sensitive materials.
  • It is an epoxy glue, transparent, solvent-free, water-resistant, and completely cured by UV light.
  • Compliant directive RoHS 2015/863/EU.

Application:

  • Specialized in optical materials such as adhesion between the base layer of solar panels and the outer protective PE film, helping to create flexibility and flexibility for thin film solar panels.
  • Bonding of temperature-sensitive materials.

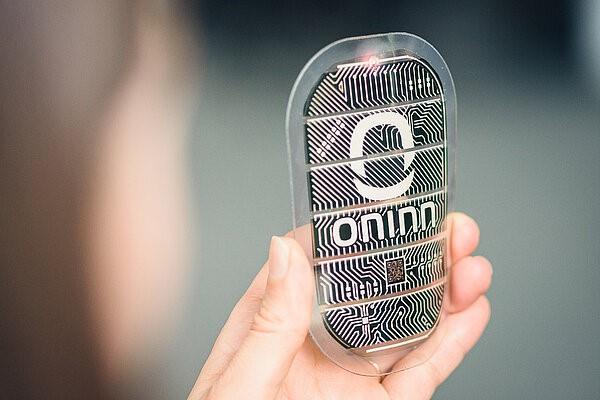

ONINN. solar cell

Illustration of thin-film solar cell: The protective film is glued with DELO glue (photo: DELO).

 Curing parameters:

Suitable wavelength:

365, 400 nm

UV intensity:

200 mW/cm2

400 mW/cm2

Irradiation time:

20 s

10 s



Specifications:



Typical glue dispensing

Use specialized injection needle tips

Defrosting waiting time

6 hours for glue bottle ≤1000 ml

12 hours for glue bottle ≤10 Liter

Pot life

28 days

Technology parameters

Color:

Colorless, transparent

Density:

1.38 g/ cm3

Viscosity (at 23 o C, Rheometer measurement, speed 10 1/s):

12000 mPas

Maximum adhesive layer thickness

0.7 mm

Compressive shear strength:



glass/glass

9 MPa

glass/PC

3 MPa

Glass/Al

12 MPa

Tensile:

22 MPa

Elongation at break:

1 %

Young's modulus:

5300 MPa

Shore D hardness:

84

Glass transition temperature:

183 0 C

Thermal expansion coefficient

Range 30 ~ 40 o C

45 ppm/K

Range 140 ~ 150 o C

132 ppm/K

Shrinkage:

2.4 % vol.

Water permeability:

6 (g.mm/m2.24h)

Expiry date (with unopened glue bottle):

6 months at temperature 0~10 o C

 Product TDS download link:  https://www.delo-adhesives.com/service-center/downloads/downloads/datasheet/DELO%20KATIOBOND_LP655_TIDB-en.pdf?type=5001



For more detailed information, please contact us.

HUST Vietnam is proud to be the exclusive distributor of adhesive products, dispensing systems, curing systems, and technology transfer from DELO in Vietnam!
