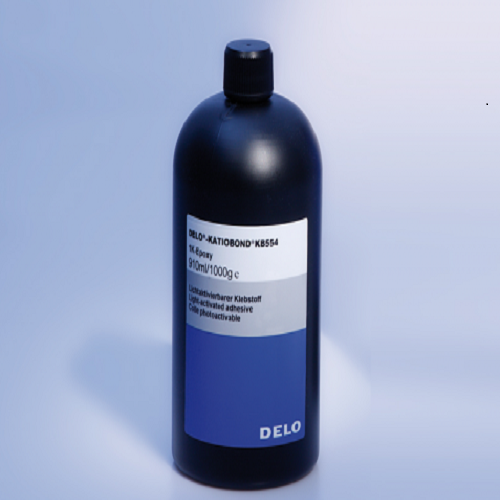

DELO KATIOBOND KB554 Sealing microswitch Adhesive

DELO KATIOBOND KB554 Sealing microswitch Adhesive

lien_he

  • This adhesive is suitable with curing methods by UV light and can be activated by visible light;
  • Multipurpose, especially for tensile-equalizing bonding and sealing, in particular in the case of high-temperature fluctuations at the component.

Introduce:

  • This adhesive is suitable with curing methods by UV light and can be activated by visible light;
  • It’s just one component base on modified epoxy resin, low viscosity.

Application range:

  • Multipurpose, especially for tensile-equalizing bonding and sealing, in particular in case of high-temperature fluctuations at the component;
kb554. apply1kb554. apply2

Sealing of a calked testing borehole of a microswitch by KB554

  • For bonding of metal, glass, plastic, and coating materials, fixing or sealing of electronic components;
  • Suitable for the bonding of opaque components through preactivation;
  • Easy to control due to yellowish fluorescence color;
  • Temperature range for use of -40 ~ +150 oC, depending on the application, other limits may be reasonable;
  • Compliant with RoHS directive 2015/863/EU;
  • Successfully tested according to UL 94 HB.

 Curing:

  • Curing with UV light or visible in a wavelength range of 320 ~ 550 nm;
  • For preactivation, only visible light in a wavelength range of 400 ~ 550 nm can be used;
  • After irradiation curing until final strength within 24h at room temperature;
  • Dependent on materials thickness and absorption, adhesive layer thickness, lamp type, and distance irradiation, curing parameters may be changing.

Lamp type

DELOLUX 20/50/80

Wavelength(nm)

365

400

460

Suitability

+*)

+

++

 ++ especially suitable, + suitable, not suitable

*) Suitable only case of direct irradiation, preactivation not possible

Techical data:

  • Color: yellowish fluoscent;
  • Density: 1.1 g/cm3;
  • Viscosity: 1500 mPas;
  • Preactivation time: 2s;
  • Open time after preactivation: 27 s;
  • Minimal irradiation time: 24 s;
  • Recommended irradiation time: 60 s;
  • Curing time until final strength: 24 h;
  • Compression shear strength glass/glass: 31 MPa;
  • Compression shear strength glass/Al: 22 MPa;
  • Compression shear strength glass/FR4: 21 MPa;
  • Compression shear strength PC/PC: 10 MPa;
  • Compression shear strength PC/Al: 6 MPa;
  • Compression shear strength PMMA/PMMA: 5 MPa;
  • Compression shear strength PBT/PBT: 6 MPa;
  • Compression shear strength PETP/PETP: 7 MPa;
  • Tensile strength: 16 MPa;
  • Elongation at tear: 45 %;
  • Young’s modulus: 100 MPa;
  • Shore hardness D: 51;
  • Decomposition temperature: 213 oC;
  • Glass transition temperature: 37 oC;
  • Shrinkage: 3.8 vol%;
  • Water absorption: 1 wt %;
  • Storage life (from 0 to +25 oC): 6 months.



For more detailed information, please contact us.

HUST Vietnam is proud to be the exclusive distributor of adhesive products, dispensing systems, glue curing, and technology transfer from DELO in Vietnam!
