Burn in test system LC-2

Sophisticated Low-cost Burn-in System with Individual Temp Control

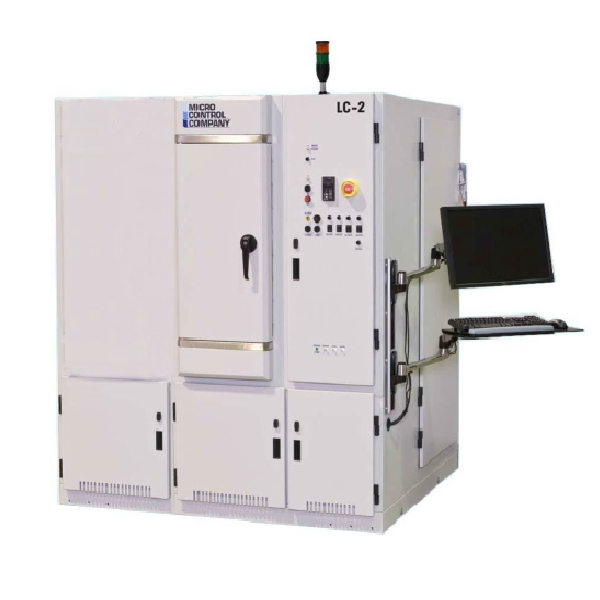

Burn-in Test System LC-2

Model: LC-2

Manufacturer: MCC - USA



I. INTRODUCTION:

The LC-2 is a sophisticated burn-in-with-test system which handles advanced requirements through its ability to perform dynamic burn-in with test. The LC-2 is ideally suited for applications in engineering characterization, life testing, and production screening.

Many types of chambers are available:Many types of chambers are available:
LC-2 H1+: Capacity of 32/64 boards

LC-2 V1S+: Capacity of 6/12 boards

LC-2 V2S+: Capacity of 12/24 boards

LC-2 V4S+: Capacity of 24/48 boards

II. FEATURED:

• Individual temperature control for each device under test up to 50 Watts.

• Individual temperature control for each device under test up to 50 Watts.

• Refrigeration available (Optional) for testing down to -40C.

• Tests devices at a maximum temperature of 150( using individually variable airflow control.

• Up to 256 digital 1/0 channels per burn-in board.

• Up to 10 individually programmable power supplies per burn-in board.

• Up to 500 Amps programmable voltage regulators per burn-in board.

• Wide range of burn-in board compatibility.

• Many chamber types available.

• Up to 8M vector memory with scan capability per burn-in board.



III. BENEFITS:

  • Ensures proper thermal stress for up to 50W DUTs
  • Enables high-volume production burn-in at the same time
  • Allows use of existing burn-in boards
  • Burn-in multiple device types at the same time
  • Exercise and test more devices in parallel
  • Stress at optimum temperature
  • Programming flexibility
  • Test both logic and memory functions
  • Run test vectors without time consuming reloads
  • Flexible DUT power
