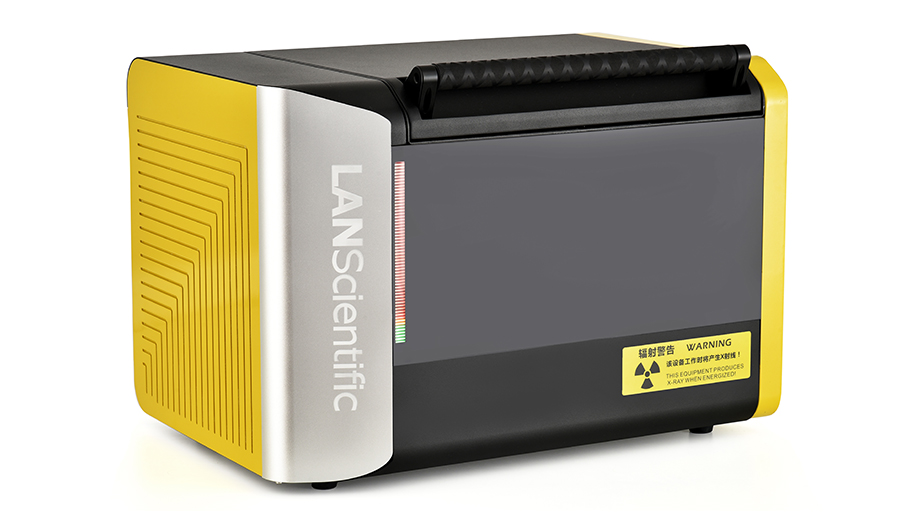

Benchtop XRF for RoHS analysis | ScopeX | LANScientific

Benchtop XRF for RoHS analysis

lien_he

  • ScopeX is equipped with an intuitive user interface, making it easy to operate and quickly used without professional training. It is suitable for large-scale continuous analysis, process control, product quality inspection and other links. ScopeX is an ideal analysis tool for petroleum, mineral, metal materials, plastic RoHS and other industries.

ScopeX XRF analyzer is equipped with intelligent software and high quality hardware, featuring wide linear range, fast analysis speed, good reproducibility, high precision. Easy sample preparation and testability on samples of various size and shape allow high sample processing capacity.

Advantages of ScopeX:

  • LANScientific XRF analysis software integrates calibration curve method, fundamental parameter method (FP method) and other analysis methods, ensuring the accuracy of test data.
  • The test does not damage or affect performance, does not harm the internal organization of tested objects. There is no damage in the whole test process.
  • Through hierarchical authority management, operators can log into system with different user names and passwords to bind test reports to corresponding testers. Multiple report export format(EXCEL, PDF, etc.) and customizable report contents satisfy different data management requirements.
  • The test does not damage or affect performance, does not harm the internal organization of tested objects. There is no damage in the whole test process.
  • Equipped with fully enclosed metal shell and leakage protection switch, scientific design. cooperation of software and hardware guarantee radiation safety meet relevant regulations.

Applications:

  • Restricted toxic elements in consumer products
  • Component analysis and brand identification of metal components/fasteners; Chlorine and bromine in polymer materials and plastics
  • Cadmium, lead and mercury in packaging materials
  • Cadmium, lead, bromine, mercury, chromium and other elements in electronic components, connectors, cables, etc.
  • Solder - the state of raw materials and the contents of tin, lead, copper, silver, bismuth, cadmium and other elements contained in the solder at different stages of use; High reliability electronic components contain adequate amounts of lead.

Specifications:

Range of elementNa—U
Sample room size365mm×300mm×78mm(L×W×H)
Maximum sample weight0-2.5KG
Cover openAutomatic
Mainframe size570mm×400mm×400mm
Weight47KG
X-ray tubeHigh power side window X-ray tube
VoltageUp to 50kV
CurrentMaximum 1mA
Cooling methodAir cooling
TypeSi-pin/SDD(Optional)
Sample observation5 megapixel HD industrial camera
CPU is I3-7100 with the same main frequency or above
RAMDDR4 4 GB memory or above
ROM1TB HDD or 256GB SSD or above
OSWindows 10
Temperature conditions10°C~35°C
Relative humidity40%-70% No condensation
Power supply220VAC
Rated power100W
