DELO ADHESIVES IN TOP WORLD FAMOUS ARCHITECTURES

THE PRESENTATION OF DELO ADHESIVES IN TOP WORLD FAMOUS ARCHITECTURES

MVRDV is a Dutch construction design company, famous in the world that any architect knows.



chanel

Crystal House in Amsterdam - Netherlands designed by MVRDV



The designs of MVRDV are breakthrough, luxurious, unique, and strange. Typically, the Crystal House in Amsterdam, the Netherlands. The facade of the building is built entirely of glass bricks. These bricks are bonded together with DELO PHOTOBOND 4468, PHOTOBOND 4497 ​​, and PHOTOBOND GB368 adhesives.

The building process of Crystal House – Designed by MVRDV



The building was built with care and attention to detail. Glass tiles are carefully selected from Poesia, the world-famous glass tile manufacturer from Italy.

glass brick

Bricks after grinding are tested for stress concentration by polarized light (Only those that meet the requirements as shown on the right will be used)

Each brick is thoroughly inspected. The most stringent requirement of bricks is that the flatness difference is not more than ±0.25mm. The bricks must be classified into 2 groups: Group A has a tolerance <+0.25mm and Group B has a tolerance> -0.25mm.

test flat brick.

Check the flatness of 5 points on the tile surface



Adhesive requirements in these designs:

  • Good adhesion to surfaces: glass/glass, glass/metal, glass/plastic, etc.
  • Good resistance to weather, humid and harsh environments, does not change color when exposed to high temperatures or sunlight;
  • Glue must be colorless and transparent;
  • Compression strength  > 17000 N.

To meet this requirement, MVRDV believes that it has chosen DELO glue for its projects. Includes DELO PHOTOBOND 4468, PHOTOBOND 4497​​, and PHOTOBOND GB368 adhesives.

PHOTOBOND adhesive is a product kind of modified acrylate glue, 1 component, cured under the effect of ultraviolet (UV) light with an extremely fast curing speed within 3 ~ 40 s.



DELO's solutions exceed customer expectations:

Product kind used: DELO PHOTOBOND

General characteristics of glue:

- Fast-curing in seconds when using UV lamp;

- Suitable wavelength: 320 ~ 420 nm; Fits all DELOLUX lamps.

- Colorless and transparent;

- Anti-discoloration under high-temperature conditions and in the sun;

- Durable to harsh environments;

- Balanced stretching force.

 Glue - Copy



The main specifications of these 3 glue codes:

Specifications

DELO PHOTOBOND – Transparent acrylate adhesive

PHOTOBOND 4468

PHOTOBOND 4497

PHOTOBOND GB368

Colour

Colorless

Colorless

Colorless

Viscosity (mPa.s)

7000

20000

5700

Density (g/cm 3 )

1.0

1.0

1.0

UV irradiation wavelength (nm)

320~420nm

UV exposure time (s)

24 ~ 40s

3~7 s

15s

Glue surface after drying

Sticky

Sticky

Dried

Compression

shear

strength

(MPa)

Glass/glass

22

28

23

Glass/ Al

24

25

23

Glass/ PC

3

17

7

Glass/Steel

20

-

-

Glass/PMMA

3

4

-

PC/PC

-

18

6

PMMA / PMMA

3

10

15

Glass/ABS

-

-

15

Elongation at break (%)

200%

160%

17%

Storage time

6 months (0~25 o C)

9 months (+18~ +25 o C)

12 months (0~25 o C)



 Recommended UV lamp type:

- DELOLUX 20/50/80;

- Fixed wavelength 365 nm or 400 nm are suitable;

- Controlled by DELOLUX pilot AxT/S4T for a separate module or Axi/S4i for pairing and controlled by PROFINET PLC system.

- Lamp life: >20,000 hours of continuous use.

See more DELO lamps here:

delolux 20spot-onlux80

DELOLUX 20

DELOLUX 50x

DELOLUX 80



Surface treatment before dispensing:

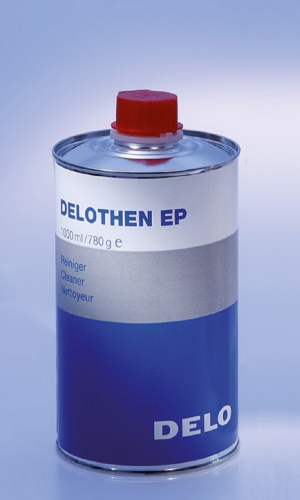

- Use DELOTHEN or DELOTHEN EP cleaning solution for glass surfaces.

- 500ml spray bottle;

 delothen epdelothen

 Method of dispensing, curing glue:

Depending on the requirements of the application, customers can choose from the following ways to release the glue:

- Apply glue directly by hand: For simple applications, small joints, just need to apply glue by hand skillfully with 50ml glue bottle in the flat bottle, easy to operate.

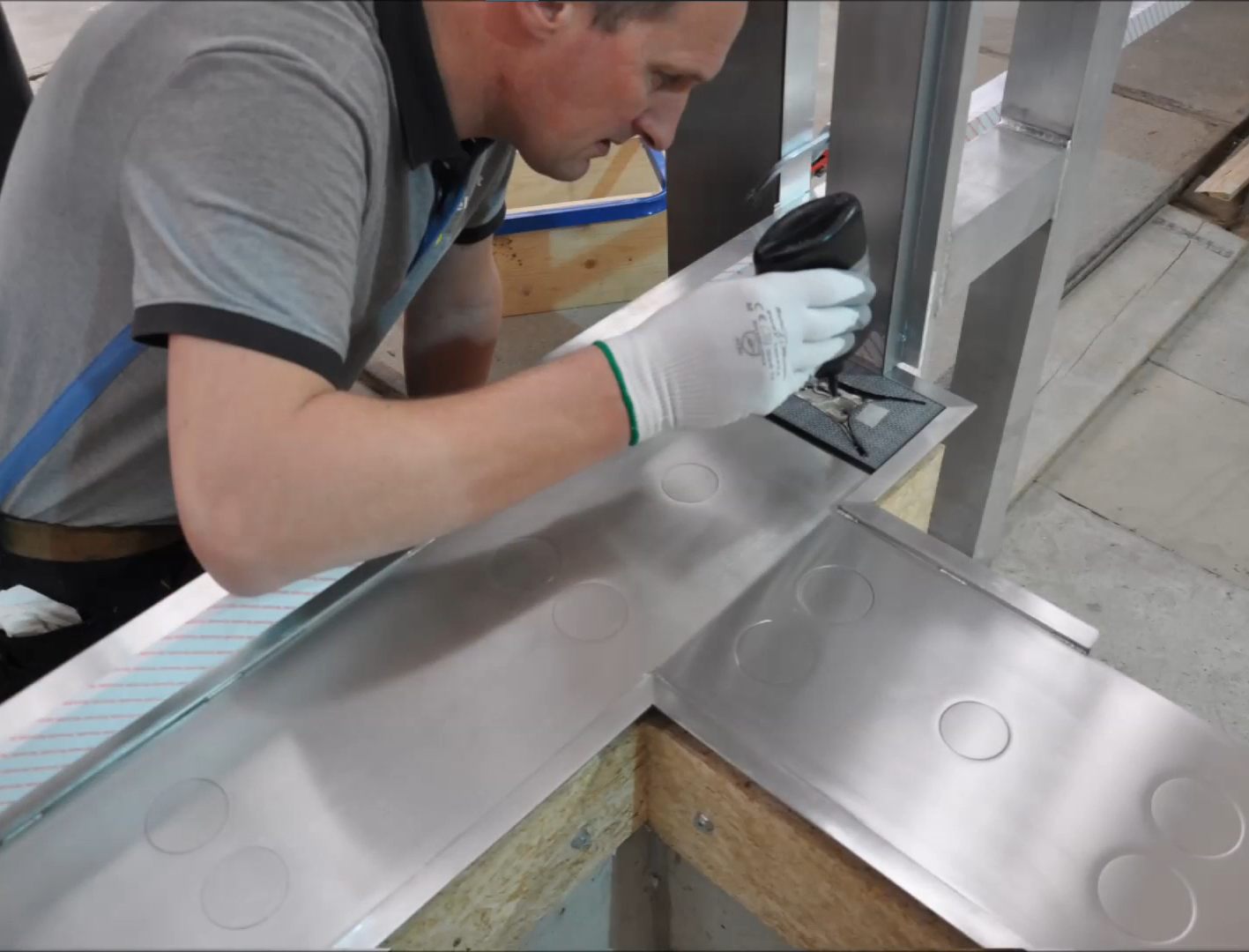

 steel background plate

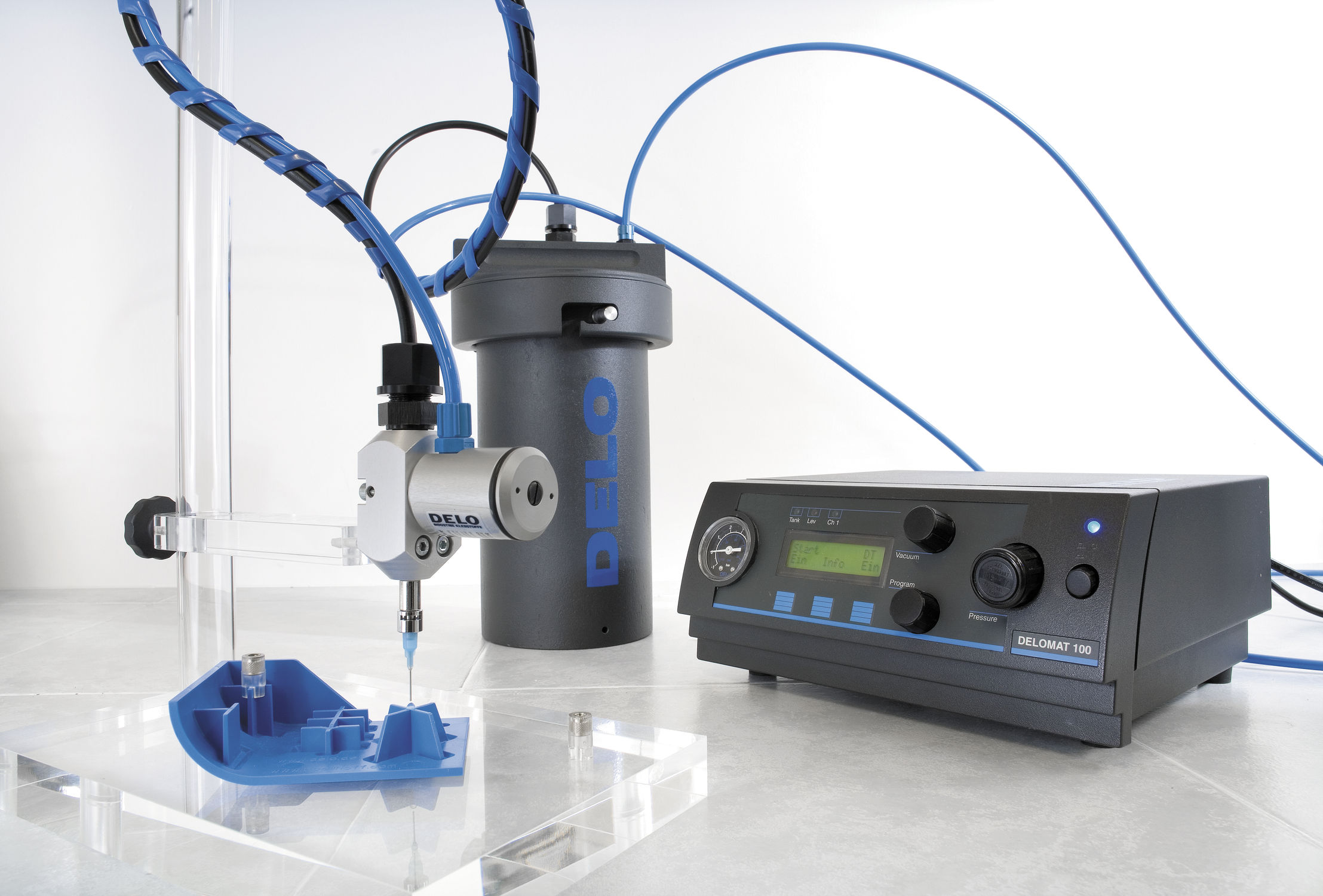

- Using DELOMAT 100 precision dosing pump system with large volume glue bottles (>1000ml), applied for designs that require high accuracy, small-sized glued parts.

 delomat 100

- The glue drying is extremely simple and fast, once you have selected the glue method and UV lamp model, the rest is just setting the time and intensity of UV irradiation.

glue



These DELO adhesive has now been applied at the first villa project in Ho Chi Minh City, Vietnam.



HUST Vietnam will assist you in choosing the most suitable solution and glue for your project.

Contact HUST VN for detailed advice on DELO products.
