Application: General Rubber, Outer soles of shoes, PU foam etc.
Standard: DIN 53516, ASTM D5963, JIS K6369, 6264, ISO 4649, KS M 6624
Feature:

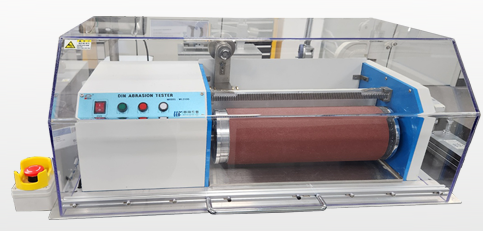

This is the equipment that measures abrasion index by wearing out samples such as vulcanized rubber, foam and PU foam by rotating a standard abrasive cloth-attached drum at the speed of 40RPM (40rpm/min), and comparing the mass of standard sample and test piece worn out under the same conditions.
Technical Specifications:
Model | ST-102D |
Test loading | 255g, 510g, 1020g |
Drum diameter | 150mm |
Drum length | 460mm |
Drum rotation | 40 ± 1rpm |
Grip lateral movement | 4.2mm/min (Drum revolution) |
Abrasive Paper | #60 |
Dimensions | 850 x 350 x 350 mm (WxDxH) |
Weight | 60Kg |
Power | AC 220V/50 Hz, 60Hz |
