DELO-ACTIVIS 600 – Bonds and activates UV adhesive only in 1 step!
UV glue activation technology has been researched and developed by DELO to the world's most advanced level.
This is an especially useful solution when bonding temperature-sensitive electronic components and is shadowed, UV light cannot reach if only UV irradiated after having parts were bonded together in the normal processing.

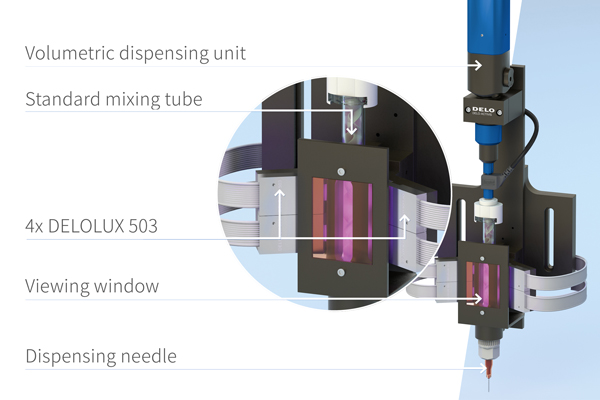

The DELO-ACTIVIS 600 dispenser is the latest innovative system, consisting of a dispenser and a UV irradiator device. It is specially developed to enable the polymerization reaction (the radical polymerization mechanism) of UV adhesives directly on the media flow and to allow dispersion and activation of the high technology industrial adhesive in just one process step.
The dispensing of adhesives is dosed by volume, whereby the flow rate and the amount of glue dispensed can be determined according to the customer's application requirements. Four powerful DELOLUX 503 UV lamps are built into the system to activate the adhesive before it is pumped out. This is to ensure that the curing of the glue has started during the bonding process.
DELO-ACTIVIS 600 is a space-saving solution that can be integrated into existing systems or used as a standalone unit. It is especially suitable when bonding and bonding electronic components such as sensors, pins or microelectronic components. The device combined with new process technology enables energy and cost-saving bonding processes.
The products of the DELO KATIOBOND FA series are suitable adhesives. These are light curing agents that have different mechanical properties and, once cured, are extremely resistant to heat and harsh environmental conditions.
- Below is a summary of some of the product's outstanding features:
- Save process costs and reduce CO2 emissions.
- Suitable for complex geometries and non-transparent materials.
- Shorten the UV irradiation time in the final treatment step.
- Learn more: DELO-ACTIVIS 600 introduction video: https://youtu.be/u1M_2q-1Co0
- Specifications: DELO-ACTIVIS 600_TDS
- Brochure: Activation on the flow
Dispensing and preactivation of adhesives in one step
