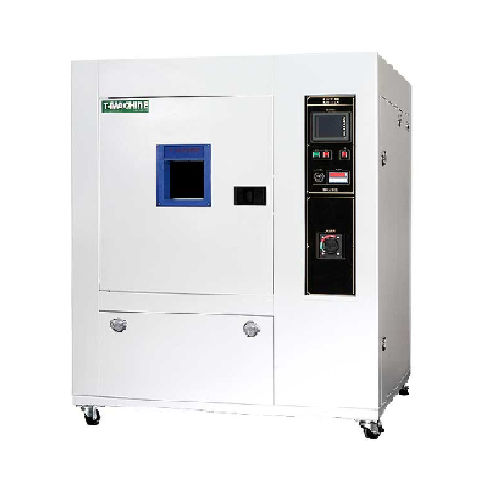

Water Test Chamber (SAE-JIS)
Model: TMJ-9710A
Maker: T-MACHINE / TAIWAN
- Product manua
Water test chamber (SEA-JIS) may be used to test the lights of automobile and a motorbikes, the function of rain weeper, weather strip, the panel of motorbikes, the guiding device of the missiles in national defense system, and the cone shaped cap of radar. It may also be used to the rainproof function of the equipment used in aviation industry.
- Feature
- Cabinet use SUS#304 Stainless steel plate.
- R.S control separately, no need for operator to enter the cabinet to replace.
- Water hammer elimination design.
- TECO variable frequency pump motor.
- Nozzle to test object distance can adjust from 0 (400) to 400 (800) mm.
- Can be connected to the power supply device, so that the test object can do lighting test at the same time with the water resistance test, including parking lights, brake lights, license plate lights, direction lights.
- Technical Specification:
MODEL | TMJ-9710A | ||
Test Applicable | R1, R2, S1, S2, SAE | ||
Internal(WxDxH)mm | 1000 x 1100 x 1000 | ||
External(WxDxH)mm | 1450 x 1300 x 2000 | ||
| Water Flow | Pressure | |
JIS Test | R1 | ≧1.9 L /min | 0.1 kgf/cm2 |
R2 | ≧3.2 L /min | 0.3 kgf/cm2 | |
JIS Test | S1 | ≧24.5L/min | 1 kgf/cm2 |
S2 | ≧39.2 L /min | 3 kgf/cm2 | |
SAE Test | Spray Angle：45°±5° | ||
Platform Rotating Speed | 0~17 RPM (Adjustable) | ||
Nozzle Rotating Speed | 23 RPM | ||
Power | 220V 1Φ | ||
