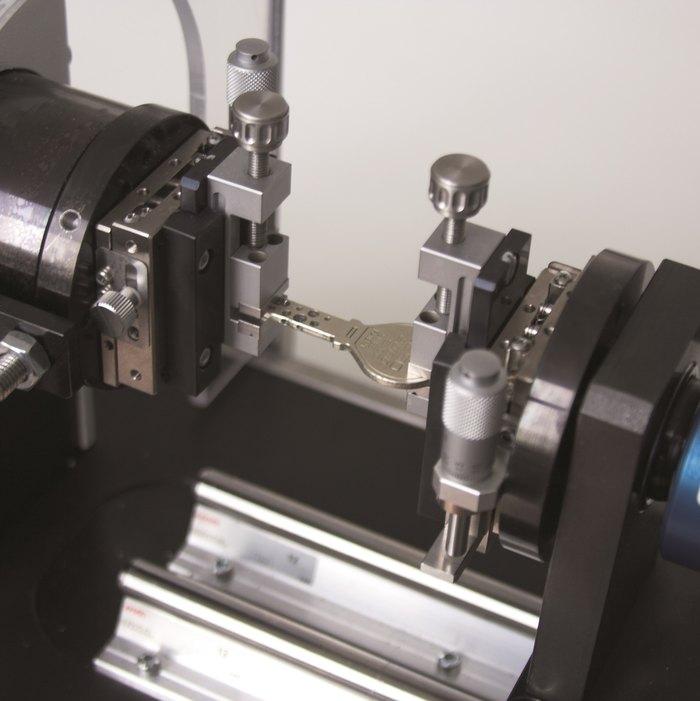

Torsion testing machines model 210

lien_he

  • In standard version Torsion testing machines by TesT are executed as horizontal machines with torsionally rigid machine bed. They are individually built as construction kit versions, always in accordance with customer demands. Thus, it is easily possible to incorporate individual preferences and specific customer requirements. Drive and control units, machine tables, frames and data acquisition will be integrated as finished components. All torsion testing machines are equipped with the TesTController 850 that is TEDS compatible.

The corresponding software TesTWinner® provides the user - besides to its free programmability - an immense repertoire of possibilities for standard test procedures and routine test execution, evaluation, presentation and further processing of results, automation of processes and much more. A wide application field is guaranteed by a comprehensive range of accessory.

Technical specifications:

  • Machine type: Horizontal design with torsionsally rigid machine bed
  • Measuring ranges: 5 Nm to 2000 Nm
  • Table top model: 5 / 10 / 20 / 50 Nm
  • Workbench model: 100 / 200 / 500 / 1000 / 2000 Nm
  • Revolution speed: 0-10rpm đến 0-1000rpm
