Features:

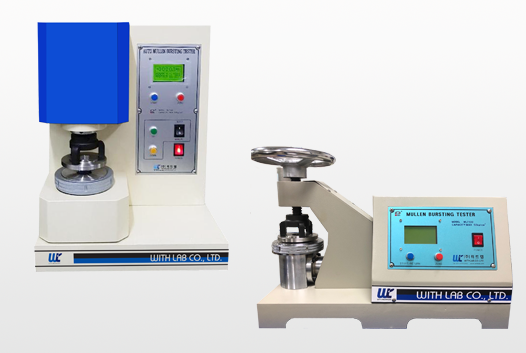

This equipment measured load value when bursting sample by inflating a rubber diaphragm with fluid pressure (glycerin) after fixing samples such as paper, film, plastic sheet to a clamp.
Auto clamp system
Digital indicator
Unitary transformation function (N, Kgf, Psi)
Standard: KS K 0351, ASTM D3786, D774, JIS P8112, P8131
Application: Fiber, Plastic sheet, paper, film, etc
Specification:
Model | ST-420 |
Type | Auto clamp (rupture, returnable) |
Pressure range | 1 ~ 50 kg/cm2 |
Resolution | Resolving power 1/10000 |
Capacity | digital 50Kgf/cm2 |
Indicator | Peak hold, zero (kgf) |
Dimensions | 420 x 500 x 2000 mm (W x D x H) |
Weight | 50Kg |
Power supply | AC 220V/50-60Hz |
